QS Motor 273 8000W



https://www.aliexpress.com/item/4000931757607.html

QS Motor 273 8000W 50H V3 2wd BLDC brushless electric car hub motor



For 273 E-Car wheel hub motor, it could be used for electric tricycle, light car.

273 motor means the diameter of iron ring/hoop is 273mm, for all 273 motor, We also has13inch,14inch,16inch,17inch 273 e-scooter hub motor.

273 spoke hub motor, 13inch,14inch,16inch.17inch 273 single shaft hub motor, 273 E-car Hub motor etc., the configuration & performance is the same as 13inch 273 Hub Motor.



If you need others, or order 2pcs more ,please kindly contact seller.



For 273 8000W V3 electric car hub Motor kit assembly, it could be used for high power electric car, which could be 96V 115KPH by 2wd, 120KPH by 4wd.

e.g. Light Retro Electric Car,

E-car weight, approx 815kg+285kg

Tire: 185/65 R14

Speed: continuous 115km/h @96V by 2wd, 120km/h@96V by 4wd

Climbing slope: 14.5°@900kg by 2wd, 25°@1100kg by 4wd,

Battery: 96V200Ah or 110V200Ah lithium(with more speed)



Normal Car,

EV weight, approx 1200kg+400kg

Tire: 195/55R15

Speed: continuous 95km/h @72V by 2wd, peak 100km/h when fully charged

Climbing slope: 10.5°@1280kg by 2wd

Battery: 72V200Ah

Range: 200km



Normal Car,

EV weight, approx 1200kg+400kg

Tire: 195/55R15

Speed: continuous 67km/h @48V by 2wd, peak 72km/h when fully charged

Climbing slope: 10.5°@1280kg by 2wd

Battery: 48V300Ah

Range: 200km

1







Key Features

1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2. It could be installed in wheels, and easy to be hybrid car.

3. Easily to make 4-wheel drive, which could spot turn.

4. Support regenerative braking

5. High efficiency: 85~92%



Product description

Item: QSMOTOR 8000W 273 V3 Electric Car Single Shaft In Wheel Hub Motor

SPEC

  • ·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

    ·Brand: QS Motor, QSMOTOR

    ·Motor Design: Single axle without rim

    ·Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)

    ·Stator: Aluminum Core

    ·Rated Power: 8000W (19000kW peak in few seconds)

    ·Rated Voltage: 96/72/48V

    ·Speed:1200RPM/930RPM/627RPM no load, approx 120km/h@96V  95km/h@72V 67km/h@48V

    ·kV: 12.5kV (120KPH@96V as default)

    ·Max Torque: approx 350N.m

    ·Max Efficiency: approx 88%

    ·Continuous Battery Current: 132 A (96V) 120 A (72V) 80A (48V)

    ·Peak Battery Current: 180A (96V) 200-250A (72V) 250A (48V)

    ·Suggest Peak Phase Current: 591A

    ·Thermic Probe: KTY83/122 (as default, optional)

    ·Working Temperature: 70-120℃ , peak 150 ℃

    ·Brake type: Car Disc brake,cover 1:PCD 3*80mm, cover 2:4*114.3mm, M12(as default)

    ·Dual Hall Set with waterproof connectors

    ·16mm² Cross Section of Phase Wire (not include insulation layer)

    ·Hall Sensor Phasing angle: 120 degree

    ·Waterproof Grade: IP65

    ·Color: Black

    ·N.W./G.W.: approx 23.0/24.7kg (TBD)

    ·Package Dimension: 43cm*43cm*43cm/piece

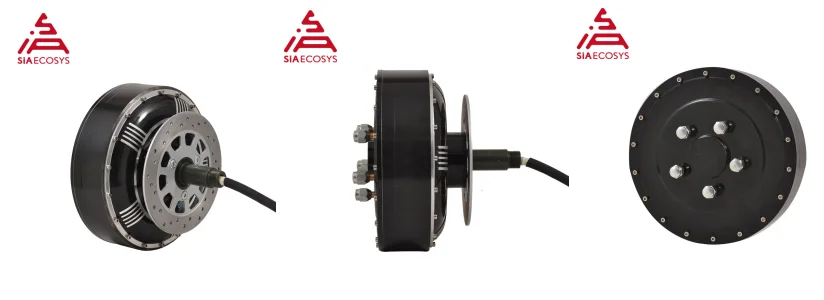

Products show:

Cover 1: Disc brake PCD:3*80mm, M8





old 正侧反

cover 2:Disc brake PCD:4*114.3mm, M12.

new 正侧反

Drawing:

Drawing for cover 1:

图纸 old cover

Drawing for cover 2:

new cover

Other power recommendation:

其他功率推荐

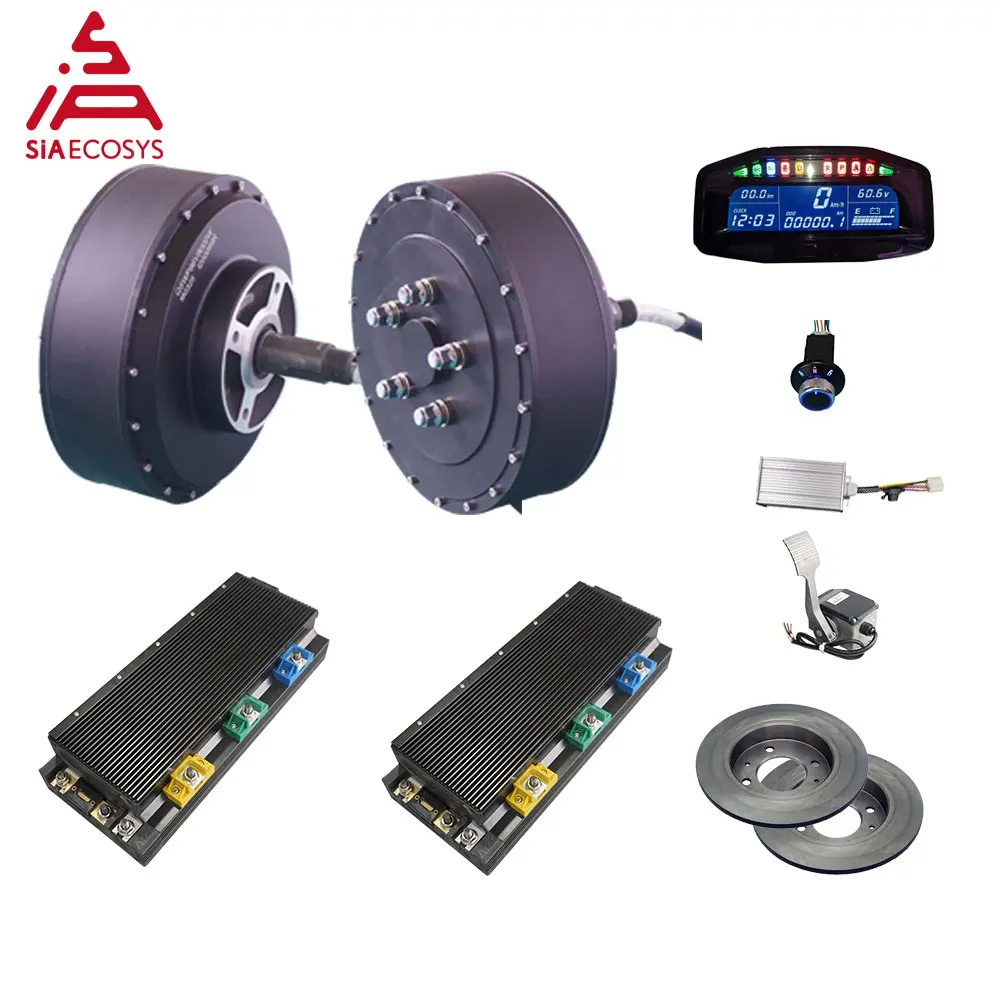

Motor kits for e-car recommedation:

Option1:

套件图

Option 2:

套件图1

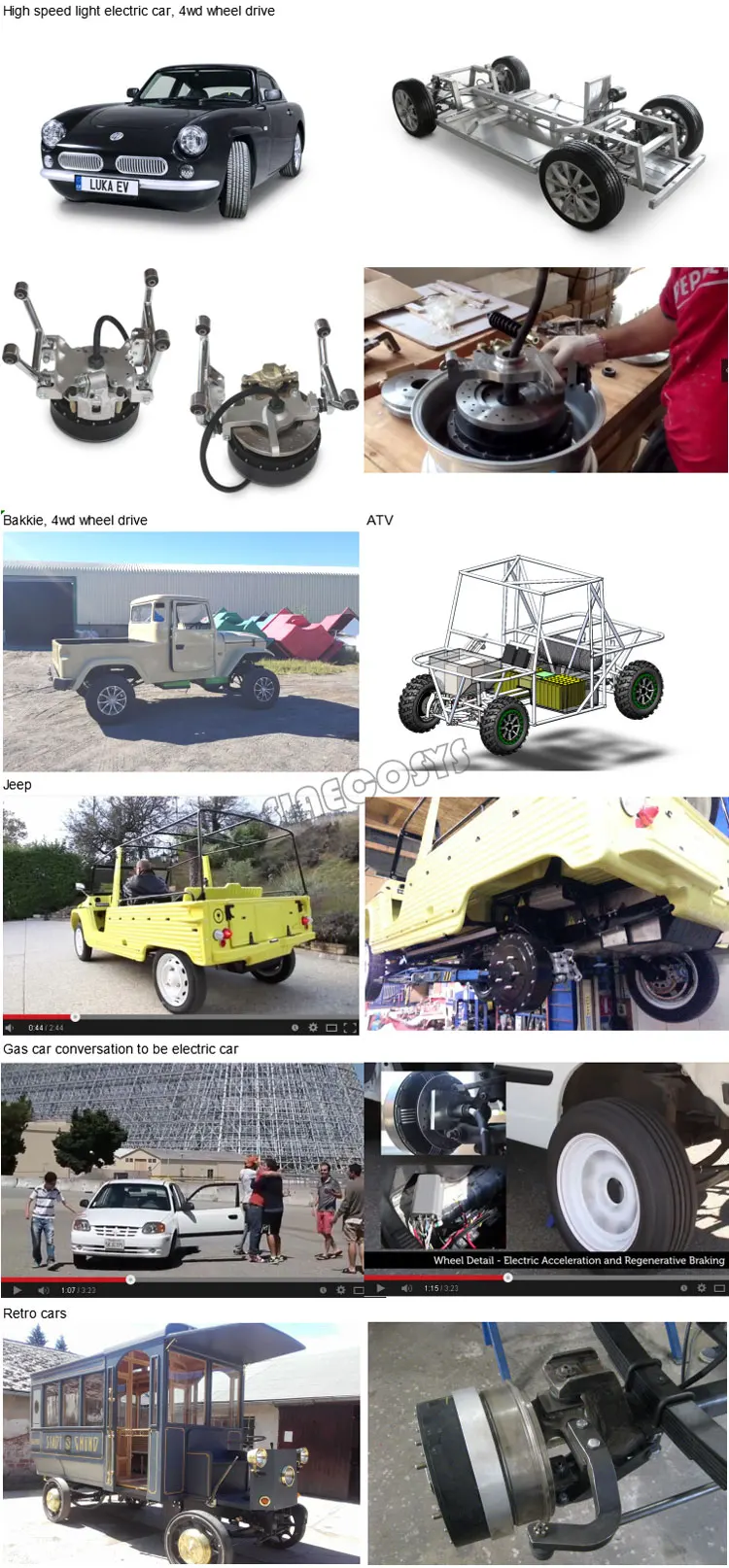

Products application

10

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.







A note to client:

1. Please contact seller confirm the parameter, otherwise we will produce as default.



2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).



3. When place order please leave email address, for seller provide manuel.



4. Please read manuel careful before woring motor and controller, and if meet problem please contact seller in time, and don't disassembly cargo without seller permit, otherwise there will be no warranty.



e-bike



FAQ



Q1. Are you trader or manufacture?

A: We're manufacture.

Q2. How long is your production time?

A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one

year.

Q4. About Customs Clearance

A: For some special countries with strict customs for import, so pls. confirm it firstly to us that you have

ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return

money and goods are not support.

Q5. How to get user manual and software

A: Please leave message to sales or send email to this email addres damon@ tzquanshun.com.

When you send email, please indicate the order number. Thanks!

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran, Portugal, Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online

directly. Thank you for your understanding.

company information:



1 (1)1 (2)
