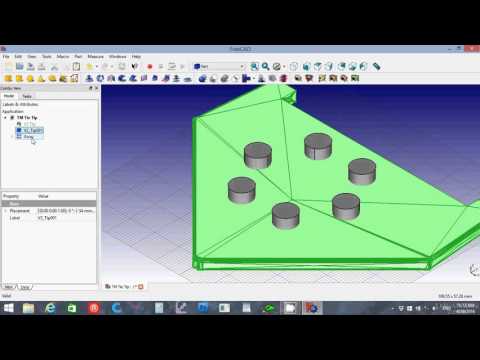

FreeCAD 0.16 STL Mesh to Part Tutorial

This is how you convert STL into parts in FreeCAD.

After you have converted into a part, only then can you use CFDoF to do CFD simulation by combining the tunnel with the object to be simulated.

The command is in Part, Create shape from mesh.

stl is a mesh format. shape is the solid or part format.
